Projection Area (Hanging)
Overview
This document describes the installation of the suspended version of our projection screen.
These instructions apply equally to Cockpit Builder and Premium Plug & Fly.
You need two people to set it up!
Height adjustment
The following graphic should help you to determine the correct height of the screen.
Montage
Screw the M6x12 hexagon head screws into the bottom of the wire rope holders and push them into the grooves of the upper profiles. Fix in the final position by turning the wire rope holders.
The necessary dowels and hooks are not included in the scope of delivery. Please select suitable fixings for your ceiling conditions.
Make sure that the hooks on the ceiling are securely mounted and can bear the corresponding load.
Suspend the profile from the wire rope holders under the ceiling and align it. The textile can now be inserted into the keder groove.
Leave the canvas to hang out at room temperature for two to three days after fitting the upper profiles. This is important to ensure that the canvas is wrinkle-free.
Slide the lower profile onto the fabric.

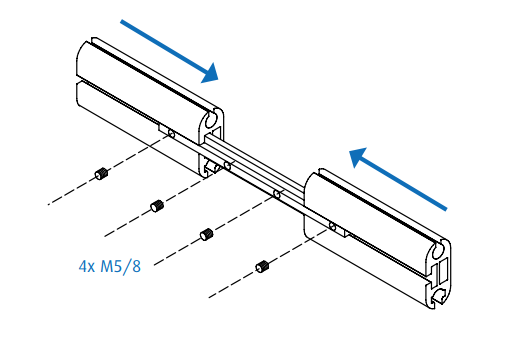

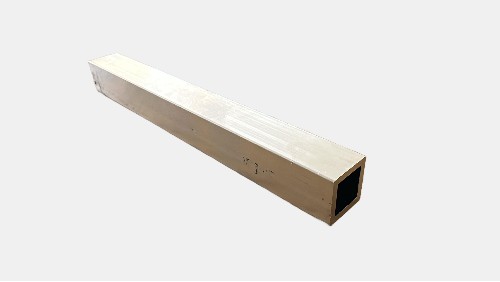

Assemble the vertical profiles as shown in the illustration. You may need to shorten them slightly with a saw. However, be sure to wait until the canvas has hung at room temperature.
Stretch the canvas so that there are no creases. Excessive tension can cause dents.
